BS Engineering Works

We are offering a wide range of drill machine. These are known for optimum quality, high efficiency, low maintenance, and easy to install features.Providing you the best range of Multi Spindle Drill Machine and Three Spindles Drill Machine with effective & timely delivery.

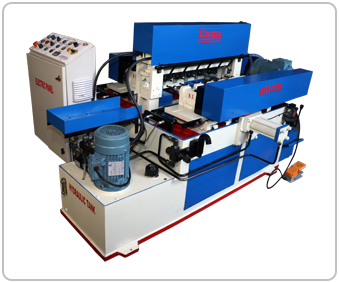

Multi Spindle Drill Machine

This Machine is specially design for Inner Prop Scaffolding Pipe. This Machine is capable to Drill the components with 6+6 Spindles from both sides, in Horizontal direction.

Brand	BSEW
Machine Type	Automatic
Power Consumption	12HP
Material	Mild Steel
Capacity	14MM DRILLING
Number Of Shaft	6+6
Usage/Application	FOR SCAFFOLDING
Hole Diameter	0-25 mm
Max Speed	1000
Model Name/Number	BS-12D

Additional Information:

Item Code: BS-12D
Production Capacity: 10
Packaging Details: 12Nos Drills, ER-25 Key

Send Enquiry

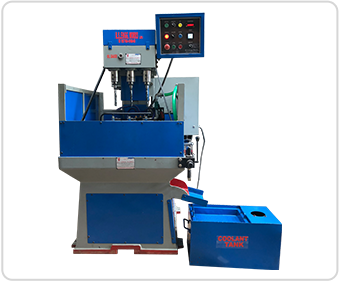

Three Spindles Drill Machine

Vertical type Three spindle Drill Machines is specially design to boost the Production. we offer to our clients, a combination of Three drills in one machine to increase the Production and to cut the labor cost. These Machines are so rigid and durable. we provide these machines in very competitive Prices.

Machine Type	Automatic
Power Consumption	10hp
Capacity	25mm
Number Of Shaft	3
Type	Hydraulic
Automatic Grade	Automatic
Brand	BSEW
Max Drill Depth	>50 mm
Hole Diameter	0-25 mm
Max Hole Size	25
No Load Speed	0-2000
Max Speed (rpm)	0-2000
Model	Drill Machine
Size	356

Send Enquiry
